Remote Access IPSec VPN 設定範例 (pt-remote-access-ipsec.pkt), Packet Tracer 5.2版

Remote Access IPSec VPN 設定範例, Packet Tracer 5.2版 PKT 檔案 (pt-remote-access-ipsec.pkt)


Remote Access 模式, 簡單地說， 就是使用一般的 PC 上面的 VPN Client 軟體, 接入總公司的VPN閘道器.

VPN 閘道器端設定摘要如下:

1. 定義 "封包保護套餐" (Transform Sets)

!
crypto ipsec transform-set CLIENT-SET esp-aes 256 esp-sha-hmac
!

2. 定義 "群組設定值, 和帳號密碼驗證方式與授權" (Group Client Configuration, Authentication and Authorization for ISAKMP)

!
aaa new-model
aaa authentication login AAA-AUTHENTICATION local
aaa authorization network AAA-AUTHORIZATION local
!
username User101 password 0 Password101
username User102 password 0 Password102
username User103 password 0 Password103
!
crypto isakmp client configuration group ALL-CLIENTS-GROUP
 key vpngrouppassword
 pool CLIENT-ADDRESS-POOL
!
crypto map REMOTE-ACCESS-MAP client authentication list AAA-AUTHENTICATION
crypto map REMOTE-ACCESS-MAP isakmp authorization list AAA-AUTHORIZATION
crypto map REMOTE-ACCESS-MAP client configuration address respond
!
ip local pool CLIENT-ADDRESS-POOL 10.100.1.1 10.100.1.10
!

3. 定義 "封包保護機制腳本" (IPSec Crypto Map)

!
crypto dynamic-map DYNAMIC-CONFIG-MAP 10
 set transform-set CLIENT-SET
!
crypto map REMOTE-ACCESS-MAP 10 ipsec-isakmp dynamic DYNAMIC-CONFIG-MAP
!

4. 定義 "VPN閘道器間交談過程" 的保護加密機制 (ISAKMP policy)

!
crypto isakmp policy 100
 encr aes 256
 authentication pre-share
 group 5
!

5. 啟用 "封包保護機制腳本" 在網路卡上

!
interface Serial0/0/0
 ip address 172.16.1.1 255.255.255.252
 crypto map REMOTE-ACCESS-MAP
!

Client PC 端設定

先使用 User101 這個帳號為例: 參數請參照前面設定黃色的部份.

GroupName: ALL-CLIENTS-GROUP
Group Key: vpngrouppassword
Host IP (Server IP): 172.16.1.1
Username: User101
Password: Password101

(其實本例中另外定義 User102, User103兩帳號, 密碼分別是 Password102 和 Password103, 都可以試看看!)

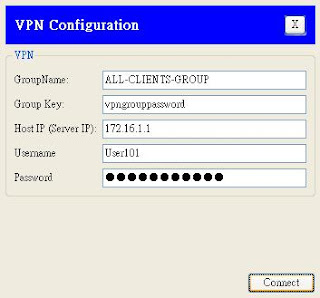

登入畫面擷取如下圖示:

登入成功:

登入成功後, 顯示所取得的 VPN 內部的 IP 位址:
